Uploading a Structure

  • Updated
Download Icon Download

There are two ways to upload a structure file into STNext:

Notes:

  • To successfully upload a structure, you must first open a structure-searchable file:
    • CASREACT

    • DJSMONLINE

    • DRUGU

    • MARPAT

    • PS

    • REAXYSFILE

    • REGISTRY

  • To enter all structure-searchable files, open the STRUCTURE cluster.


Uploading a Structure on the Structures Page

Note: To successfully upload a structure, you must first open a structure-searchable file or you will be prompted to do so. To enter all structure-searchable files, open the STRUCTURE cluster.

In order for a structure to be uploaded from the Structures page, it must have been already imported via the Import Structure button or Structure Editor.

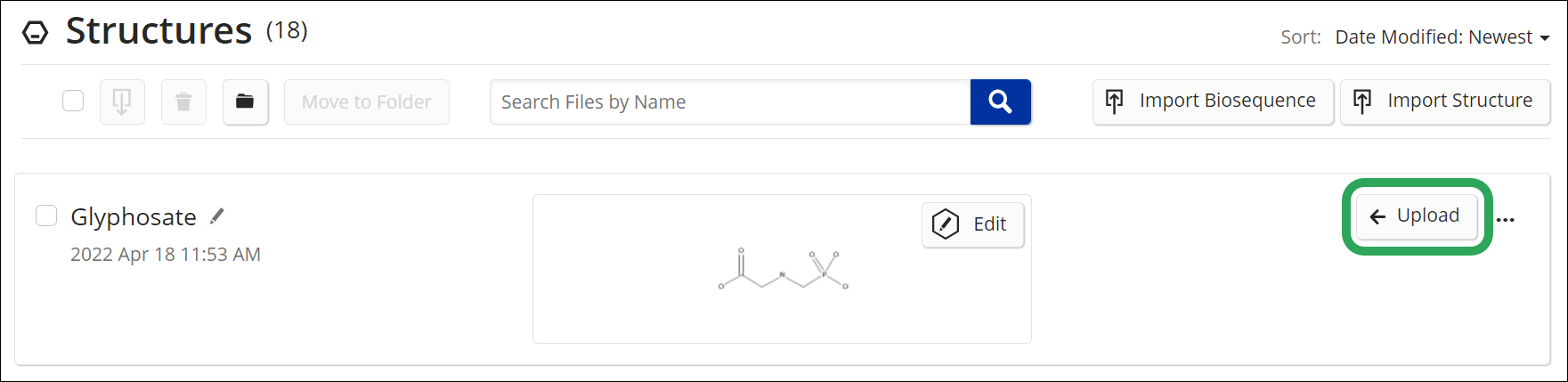

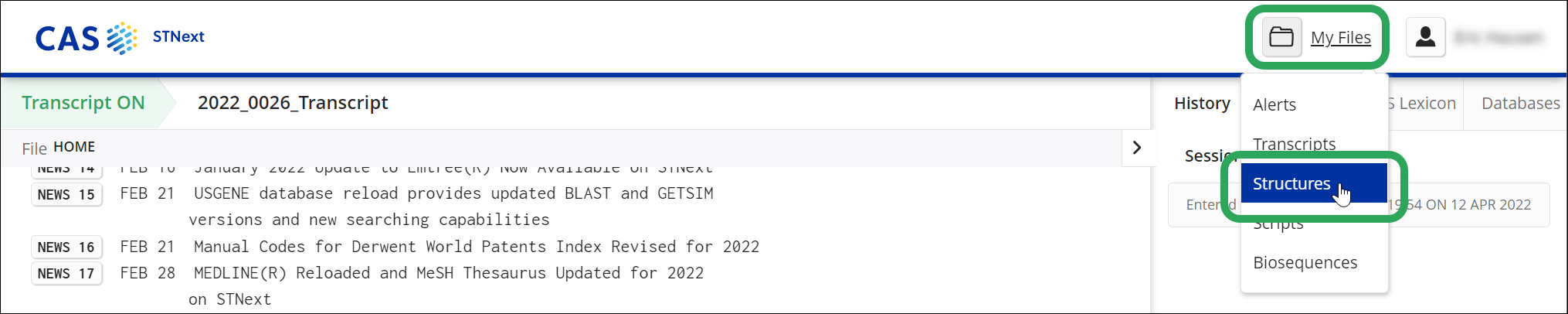

  1. Click My Files, and then select Structures.


  2. Click the structure file's Upload button.

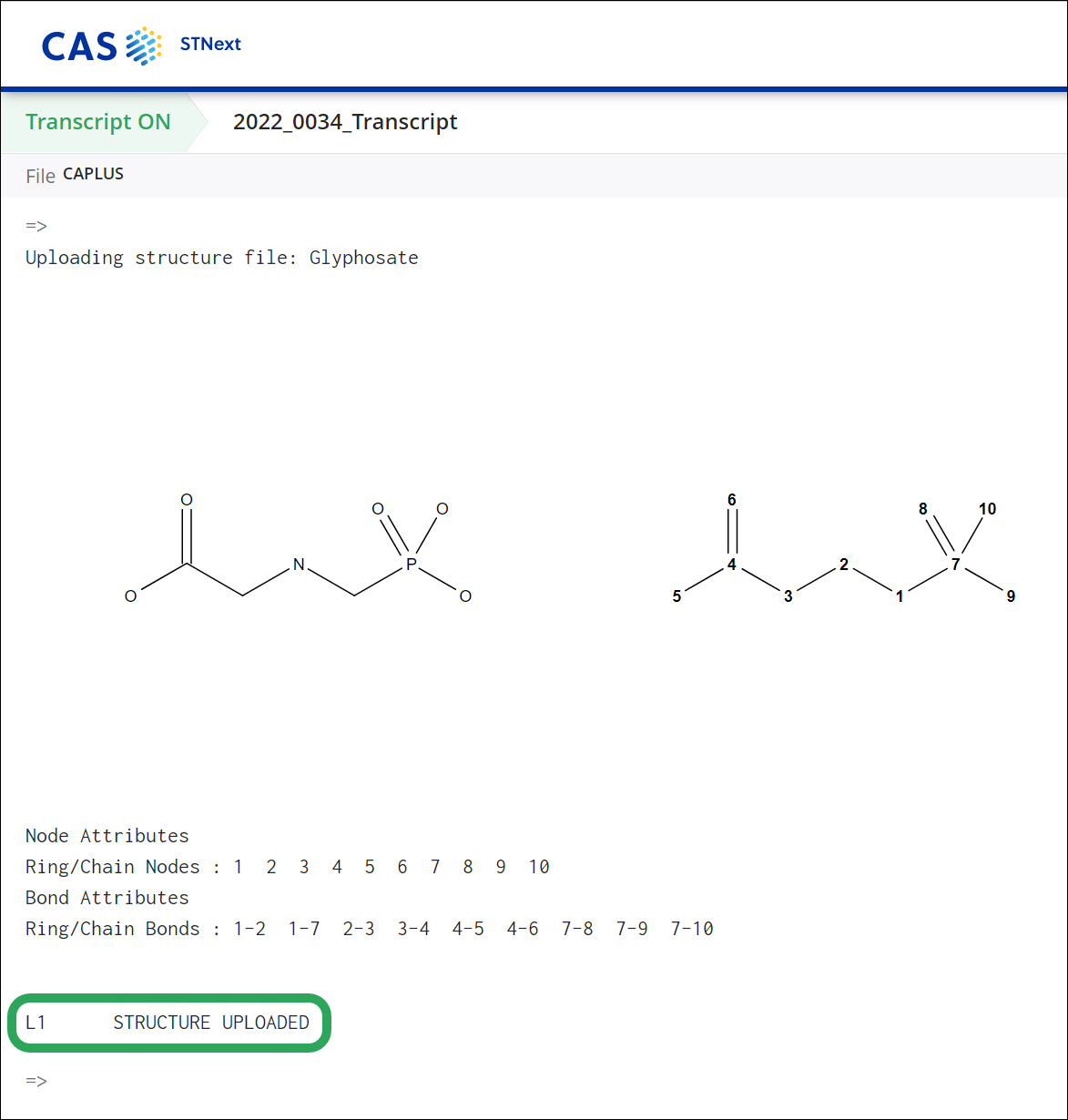

  3. You will then return to the session window where the structure is uploaded.


Uploading a Structure in the Structure Editor

Note: To successfully upload a structure, you must first open a structure-searchable file or you will be prompted to do so. To enter all structure-searchable files, open the STRUCTURE cluster.

Using the Structure Editor, you may upload structures to STNext to perform a structure query or for future use.

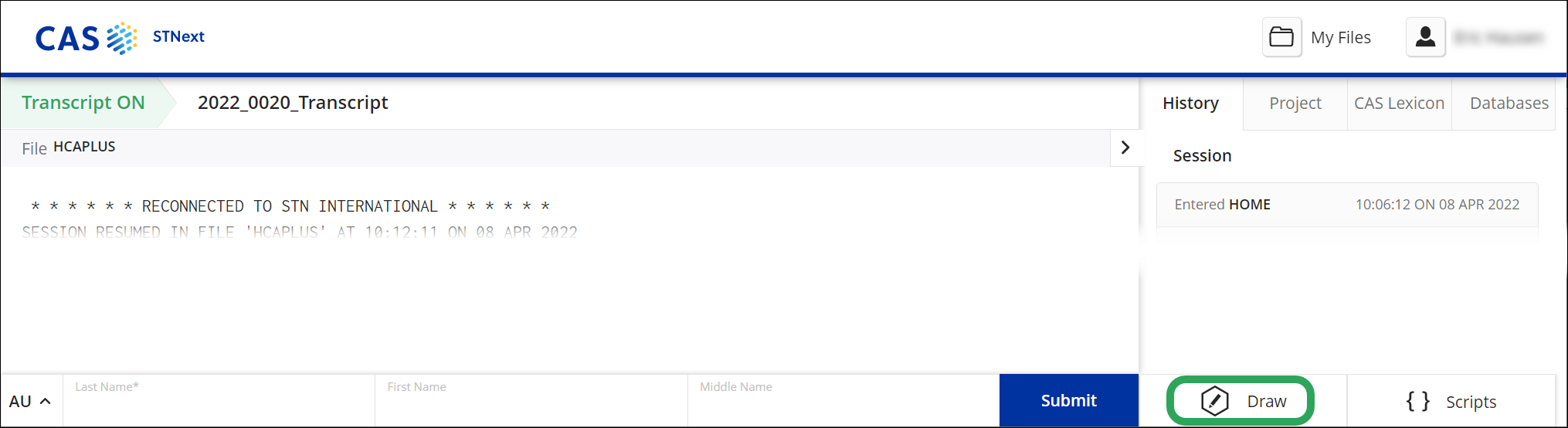

  1. Click the Draw button in the lower right-hand corner.

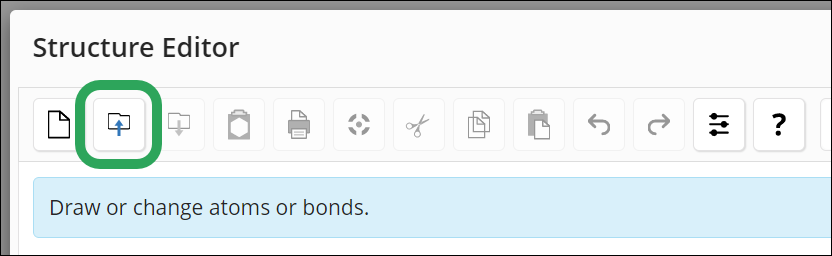

  2. In the Structure Editor, click the Import icon.

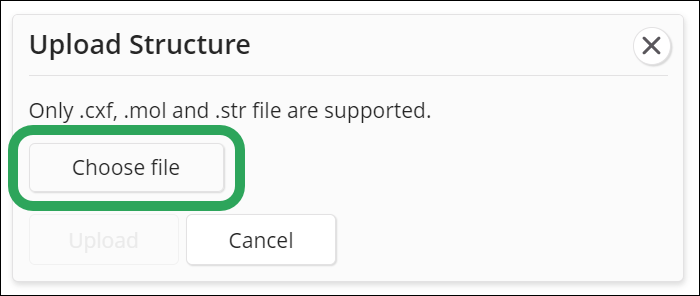

  3. Click the Choose File button in the Upload Structure pop-up.

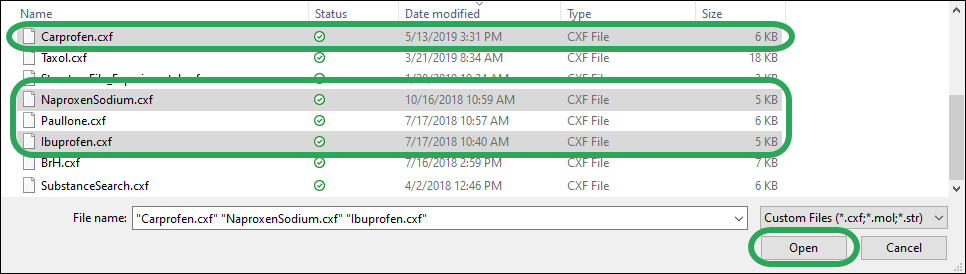

  4. Select the structure file, and then click the Open button.

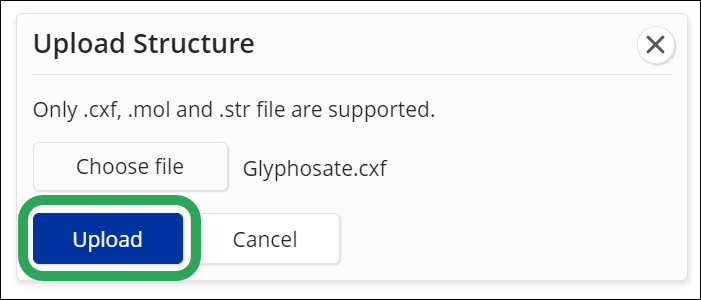

  5. Click the Upload button in the Upload Structure pop-up.

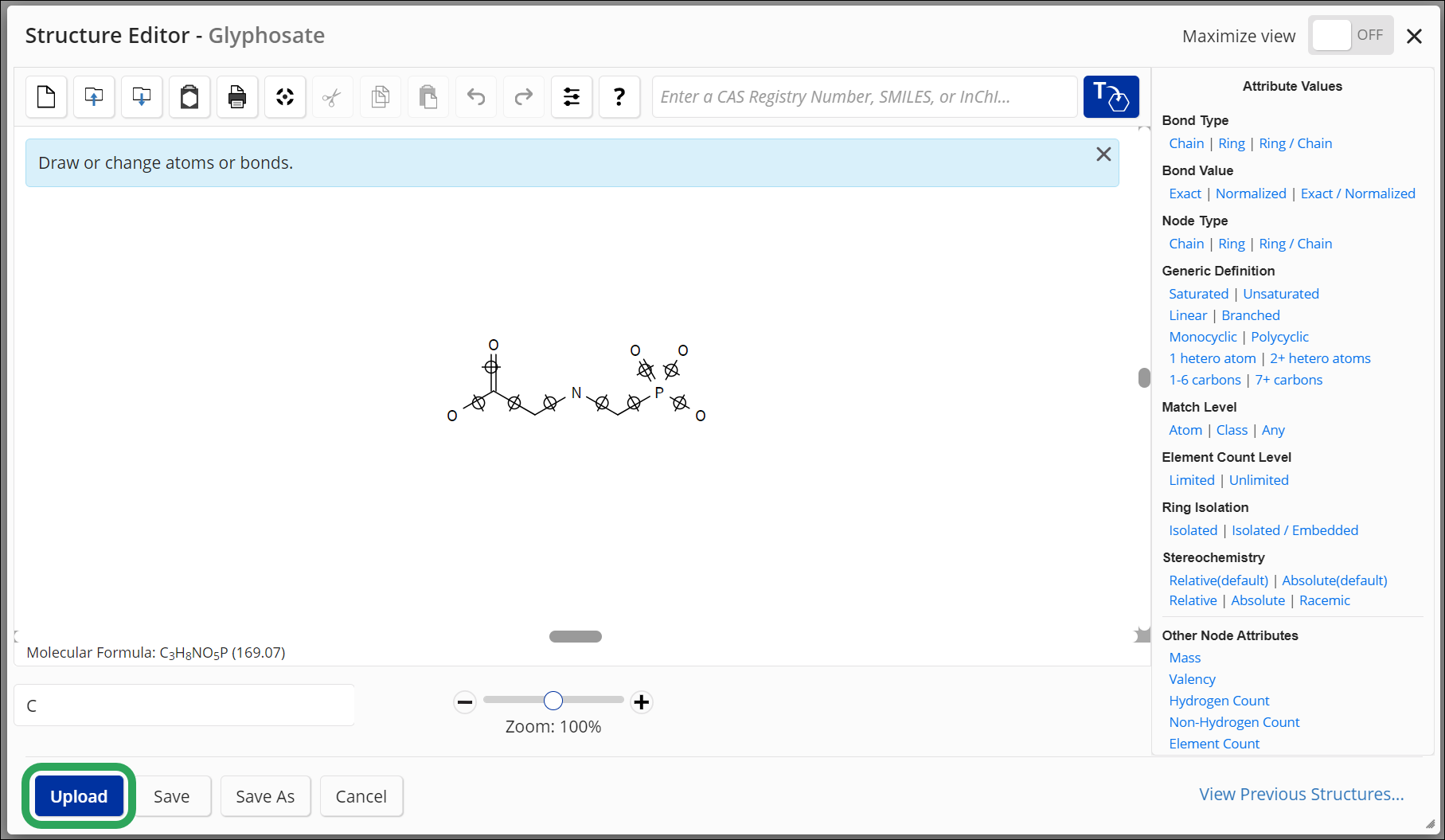

  6. In the Structure Editor, click the Upload button.


In addition to uploading to the session, the structure is added to the Structures page for future upload.
