Downloading a Sequence File

  • Updated
Download Icon Download

Downloading a Sequence File from the Edit Sequence Window

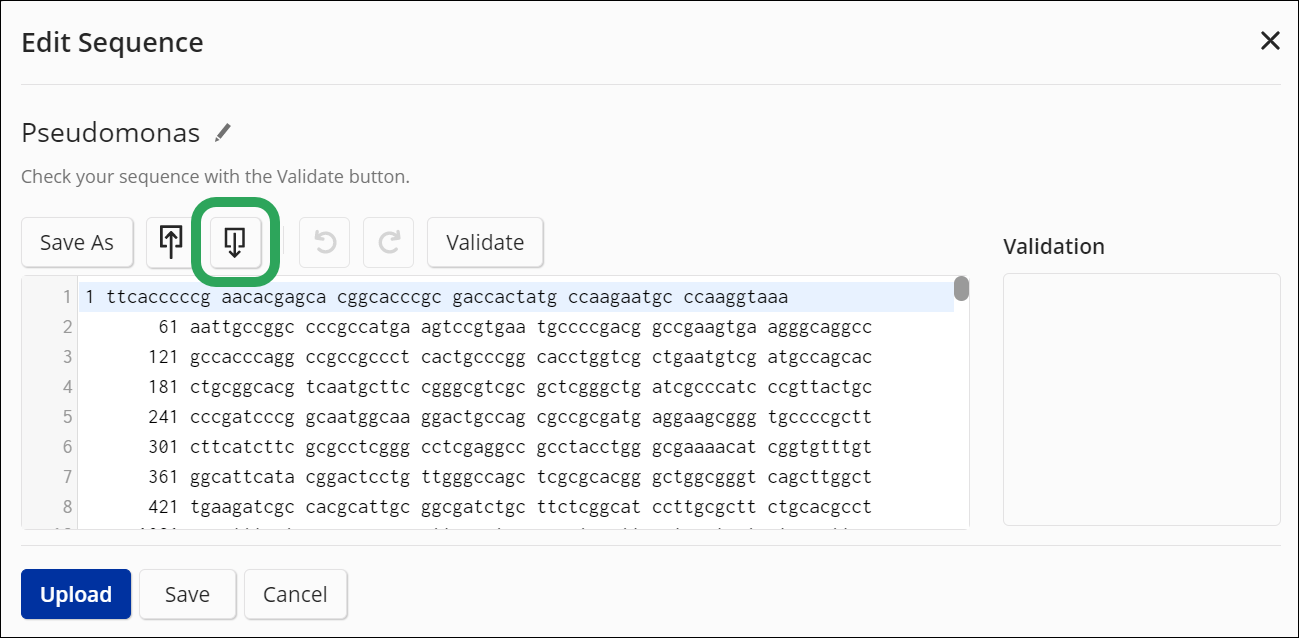

Click the Download icon in the Edit Sequence window to download the sequence as .txt file.



Downloading Stored Sequence Files

To download stored sequence files:

  1. Click My Files, and then select Structures.


  2. On the Structures page, you have the option to download one or more files:

Download Single File

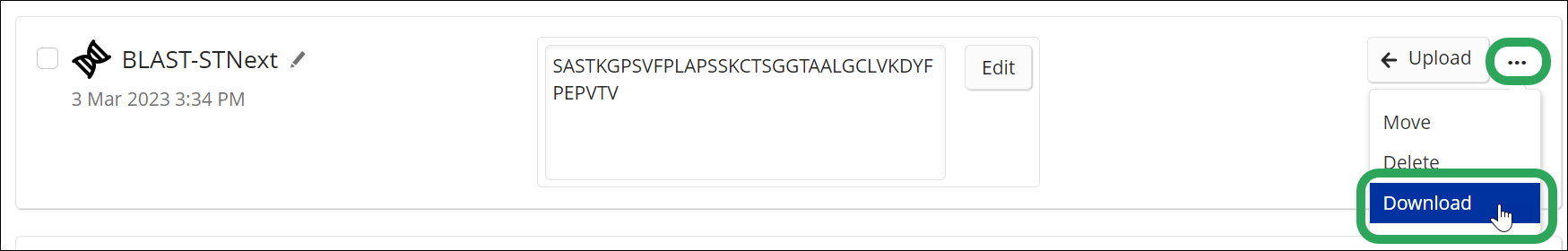

Click the sequence file's ellipsis (...) icon, and then select Download.

_STNext_Structures-Biosequences_EllipsisMenu_Download.pngThe selected sequence file downloads as a .txt file.


Download a Folder

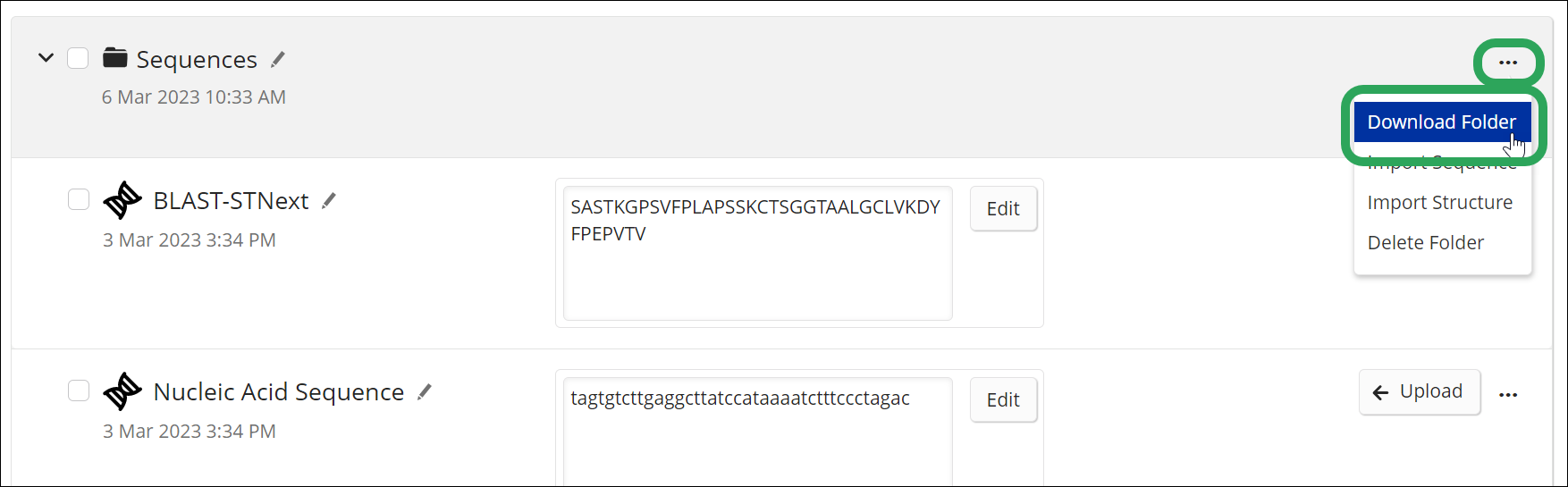

Click the folder's ellipsis (...) icon, and then select Download Folder.

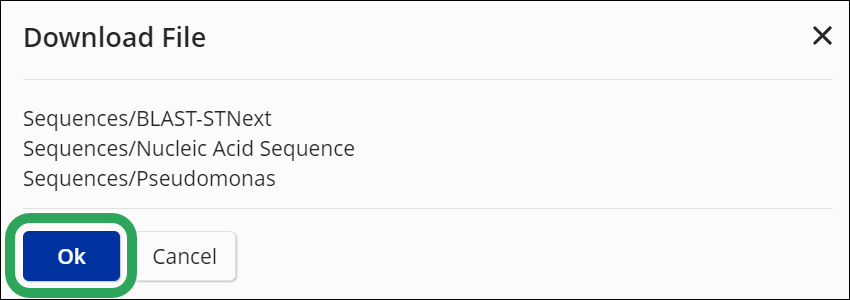

Click the Ok button in the Download File window.


The folder and its contents download as a single .zip file; sequences as .txt files and structures as .cxf files.


Download All Files

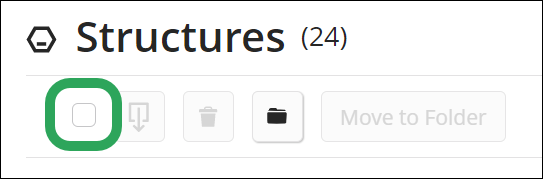

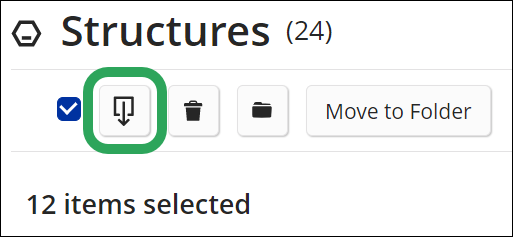

Click the Select All check box and then click the Download icon.



Click the Ok button in the Download File window.


Files download as a single .zip file; sequences as .txt files and structures as .cxf files. Any folders with their respective files are maintained.
